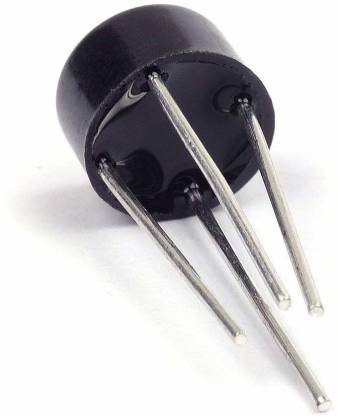

2W10 W10 1000V 1.5A Silicon Bridge Rectifier Single Phase Full Wave Rectifier
2W10 1000V 1.5A Silicon Bridge Rectifier Single Phase Full Wave Rectifier
W10 is a single phase and full-wave bridge rectifier ic with 1000V and 1.5A voltage and current rating respectively.
Product Details:
| Rectifier IC | W10 |
| Rectifier Type | Full-wave rectifier |
| Phase | single phase |
| Number of pins | 4 |
| Mounting type | through holes |
| Polarity | marked on IC |
| case | molded plastic technique |
| Weight | 1.3g |
| Package contains | 1 x w10 Rectifier IC |
Specification
- Peak reverse voltage: 1000V
- Maximum RMS voltage: 700V
- Maximum DC blocking voltage: 1000V
- Maximum forward voltage: 1V
- Peak forward current: 1.5A
- Maximum reverse current: 10µA
Product Technical Specifications
| EU RoHS | Compliant |
| ECCN (US) | EAR99 |
| Part Status | Active |
| Bridge Type | Single Phase |
| Configuration | Single |
| Peak Reverse Repetitive Voltage (V) | 1000 |
| Peak Average Forward Current (A) | 2 |
| Peak RMS Reverse Voltage (V) | 700 |
| Peak Non-Repetitive Forward Surge Current (A) | 50 |
| Peak Forward Voltage (V) | 1.1 |
| Peak Reverse Current (uA) | 10 |
| Minimum Operating Temperature (°C) | -55 |
| Maximum Operating Temperature (°C) | 125 |
| Automotive | No |
| Pin Count | 4 |
| Military | No |
| Mounting | Through Hole |
| Diameter | 3.8(Max) |
| Package Height | 7.75(Max) |
| PCB changed | 4 |
2W10 1000V 1.5A Silicon Bridge Rectifier Single Phase Full Wave Rectifier
W10 is a single phase and full-wave bridge rectifier ic with 1000V and 1.5A voltage and current rating respectively.
Product Details:
| Rectifier IC | W10 |
| Rectifier Type | Full-wave rectifier |
| Phase | single phase |
| Number of pins | 4 |
| Mounting type | through holes |
| Polarity | marked on IC |
| case | molded plastic technique |
| Weight | 1.3g |
| Package contains | 1 x w10 Rectifier IC |
Specification
- Peak reverse voltage: 1000V
- Maximum RMS voltage: 700V
- Maximum DC blocking voltage: 1000V
- Maximum forward voltage: 1V
- Peak forward current: 1.5A
- Maximum reverse current: 10µA
Product Technical Specifications
| EU RoHS | Compliant |
| ECCN (US) | EAR99 |
| Part Status | Active |
| Bridge Type | Single Phase |
| Configuration | Single |
| Peak Reverse Repetitive Voltage (V) | 1000 |
| Peak Average Forward Current (A) | 2 |
| Peak RMS Reverse Voltage (V) | 700 |
| Peak Non-Repetitive Forward Surge Current (A) | 50 |
| Peak Forward Voltage (V) | 1.1 |
| Peak Reverse Current (uA) | 10 |
| Minimum Operating Temperature (°C) | -55 |
| Maximum Operating Temperature (°C) | 125 |
| Automotive | No |
| Pin Count | 4 |
| Military | No |
| Mounting | Through Hole |
| Diameter | 3.8(Max) |
| Package Height | 7.75(Max) |
| PCB changed | 4 |
$0.04
Original: $0.13
-69%2W10 W10 1000V 1.5A Silicon Bridge Rectifier Single Phase Full Wave Rectifier—
$0.13
$0.04Description
