The ESP-12 Series ESP8266 WiFi Wireless IoT Board Modules are highly integrated and versatile solutions designed for Wi-Fi networking and internet-of-things (IoT) applications. Leveraging the powerful ESP8266 chip, these modules offer a cost-effective and efficient platform for creating a wide range of connected devices. Each model within the ESP-12 series (such as ESP-12E, ESP-12F, and ESP-12S) has unique features catering to different requirements while maintaining a core set of robust capabilities.

Key Features:

• Wi-Fi Capabilities: Supports 802.11 b/g/n standards with WPA/WPA2 security.
• Integrated TCP/IP Protocol Stack: Enables quick integration into any project with network connectivity needs.
• High Performance: Features a Tensilica L106 32-bit RISC processor operating at 80MHz.
• Low Power Consumption: Advanced power management capabilities ensure efficient operation in various power modes.
• Extensive I/O Options: Multiple GPIOs, PWM, ADC, and UART interfaces provide flexibility for diverse applications.
• Compact Design: Small form factor facilitates integration into space-constrained designs.

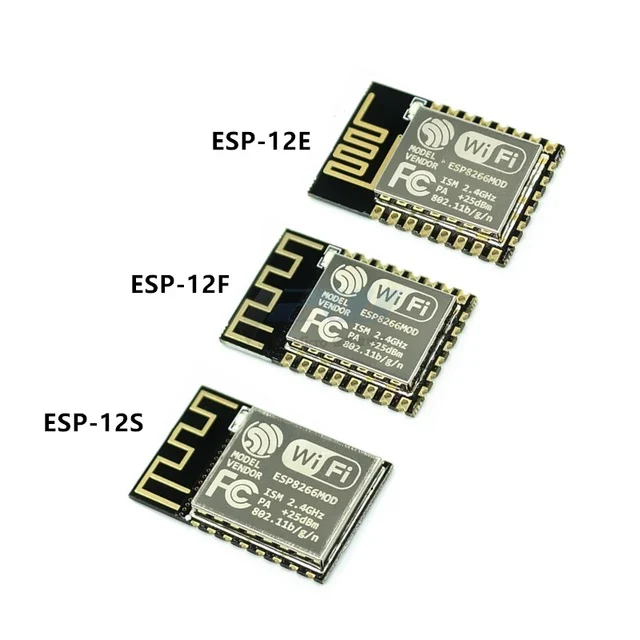

Model-Specific Technical Details:

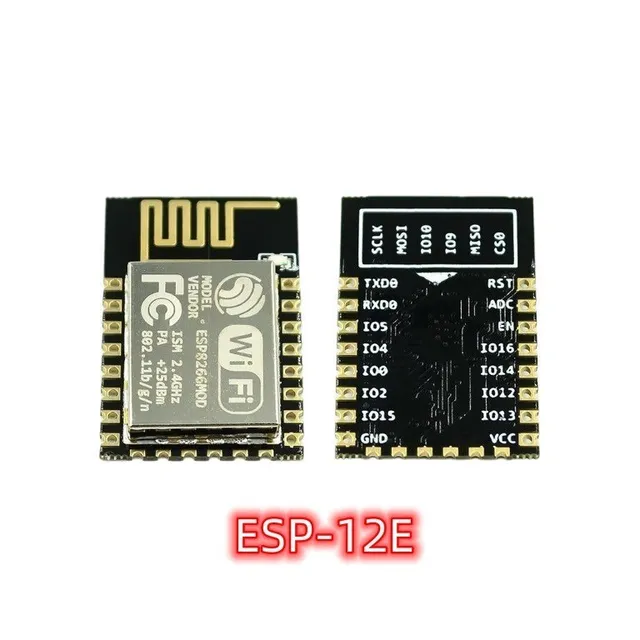

1. ESP-12E:

   • Antenna Type: PCB trace antenna.
   • Flash Memory: 4 MB (32 Mbit).
   • GPIO Pins: 11 GPIOs available for interfacing.
   • Additional Interfaces: UART, SPI, I2C.
   • Dimensions: 24mm x 16mm.
   • Features: Ideal for applications needing robust Wi-Fi performance and multiple I/O options.

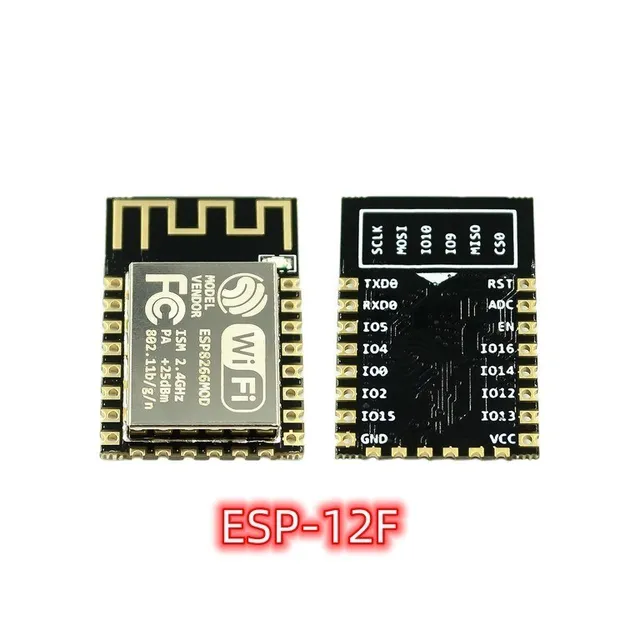

2. ESP-12F:

   • Antenna Type: Enhanced PCB trace antenna for improved range and stability.
   • Flash Memory: 4 MB (32 Mbit).
   • GPIO Pins: 11 GPIOs available for interfacing.
   • Additional Interfaces: UART, SPI, I2C.
   • Dimensions: 24mm x 16mm.
   • Features: Enhanced version of ESP-12E with better antenna performance and stability.

3. ESP-12S:

   • Antenna Type: PCB trace antenna.
   • Flash Memory: 4 MB (32 Mbit).
   • GPIO Pins: 9 GPIOs available for interfacing.
   • Additional Interfaces: UART, SPI, I2C.
   • Dimensions: 24mm x 16mm.
   • Features: Simplified design with a focus on reliable performance and ease of use, suitable for beginners.

Applications:

• Home Automation: Smart home devices, remote controls, security systems.
• Industrial Automation: Remote monitoring, control systems, data logging.
• Consumer Electronics: Wearables, portable devices, gaming peripherals.
• Prototyping and Development: Rapid prototyping for IoT startups and hobbyists.
