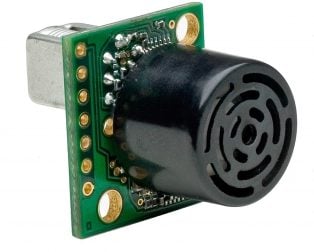

Maxbotix MB1240 XL-MaxSonar-EZ4 High Performance Ultrasonic Sensor
This Maxbotix MB1240 XL-MaxSonar-EZ4 High Performance Ultrasonic Sensor Module is for indoor use only.
Features of the MB1240, XL-MaxSonar-EZ4, include centimeter resolution, has the highest noise tolerance and narrowest beam width of any sensor in the XL‑MaxSonar‑EZ sensor line, short to long distance detection, range information from 20cm to 765cm, a 10Hz read rate, and various output options: pulse-width, analog voltage, and RS232 serial.
The MB1240 is a great choice for applications where only larger objects need to be detected.
The MB1240 from the XL‑MaxSonar‑EZ line of sensors is a very small, less than one cubic inch, ultrasonic sensor component module. This sensor comes with mounting holes provided on the circuit board for easy installation in nearly all applications.
In addition, the MB1240 offers virtually noise free distance readings through the use of high-output acoustic power combined with continuously variable gain, real‑time background automatic calibration, real‑time waveform signature analysis, and noise rejection algorithms. This holds true even in the presence of many of the various acoustic or electrical noise sources.
This Maxbotix MB1240 XL-MaxSonar-EZ4 High Performance Ultrasonic Sensor Module is for indoor use only.
Features of the MB1240, XL-MaxSonar-EZ4, include centimeter resolution, has the highest noise tolerance and narrowest beam width of any sensor in the XL‑MaxSonar‑EZ sensor line, short to long distance detection, range information from 20cm to 765cm, a 10Hz read rate, and various output options: pulse-width, analog voltage, and RS232 serial.
The MB1240 is a great choice for applications where only larger objects need to be detected.
The MB1240 from the XL‑MaxSonar‑EZ line of sensors is a very small, less than one cubic inch, ultrasonic sensor component module. This sensor comes with mounting holes provided on the circuit board for easy installation in nearly all applications.
In addition, the MB1240 offers virtually noise free distance readings through the use of high-output acoustic power combined with continuously variable gain, real‑time background automatic calibration, real‑time waveform signature analysis, and noise rejection algorithms. This holds true even in the presence of many of the various acoustic or electrical noise sources.
Original: $34.59
-70%$34.59
$10.38Description
This Maxbotix MB1240 XL-MaxSonar-EZ4 High Performance Ultrasonic Sensor Module is for indoor use only.
Features of the MB1240, XL-MaxSonar-EZ4, include centimeter resolution, has the highest noise tolerance and narrowest beam width of any sensor in the XL‑MaxSonar‑EZ sensor line, short to long distance detection, range information from 20cm to 765cm, a 10Hz read rate, and various output options: pulse-width, analog voltage, and RS232 serial.
The MB1240 is a great choice for applications where only larger objects need to be detected.
The MB1240 from the XL‑MaxSonar‑EZ line of sensors is a very small, less than one cubic inch, ultrasonic sensor component module. This sensor comes with mounting holes provided on the circuit board for easy installation in nearly all applications.
In addition, the MB1240 offers virtually noise free distance readings through the use of high-output acoustic power combined with continuously variable gain, real‑time background automatic calibration, real‑time waveform signature analysis, and noise rejection algorithms. This holds true even in the presence of many of the various acoustic or electrical noise sources.
