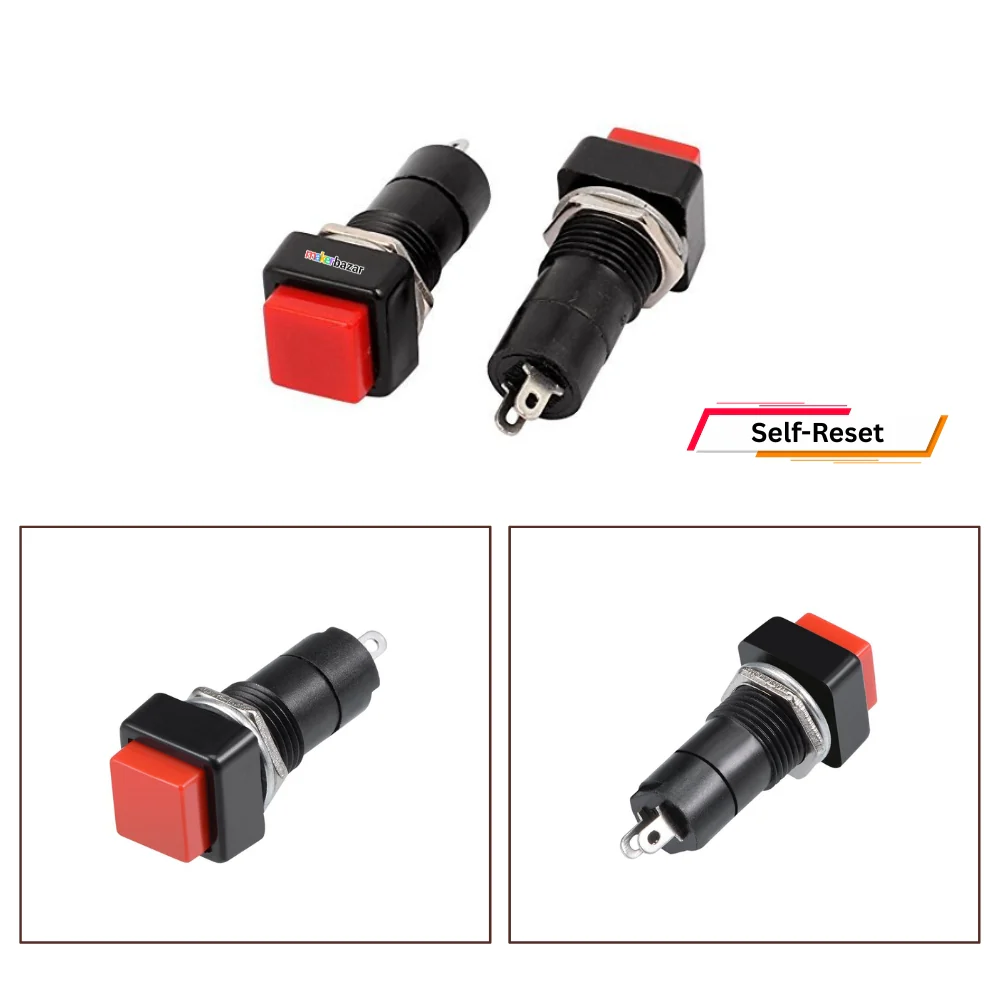

Red Momentary Push Button Switch, SPST Normally Open – Lock & Unlock Options, 12mm, Panel Mount

Upgrade your control panels with this 12mm Red Momentary Push Button Switch from uxcell, available in both Lock and Unlock types. Designed for reliability and performance, it features a SPST (Single Pole Single Throw) Normally Open contact, 3A current rating at 250V, and a durable copper contact for long-term use. The switch fits standard 12mm mounting holes and has an IP54 rating for moderate dust and water resistance. Ideal for industrial applications, machinery, or custom electronics.

Specifications:

• Operation Type: Positional/Momentary

• Variants: Lock & Unlock (Choose as per use case)

• Contact Type: SPST (Single Pole Single Throw), Normally Open

• Operating Voltage: 250V AC

• Rated Current: 3A

• Mounting Hole Diameter: 12mm (0.47")

• Actuator Shape: Square Flat – Red

• Terminals: 2 Copper terminals

• Material: Copper + Plastic

• IP Rating: IP54 (Dust and splash resistant)

• Package Content: 10 x Push Button Switches

• Switch Dimensions: 5.51 x 3.94 x 1.57 inches
